Did everything come to find out shop that did the timing belt didn't replace the tensioner checked compression nothing  all intake valves were bent. I have replaced the heads but now there is a new headacke  cam gears can go on two ways would know which way on old heads but not on the new ones any way to time motor by the pins in the cams
Vehicle: 01 Saturn L300 V6

1 Answer

0 like 0 dislike
by (13.5k points)

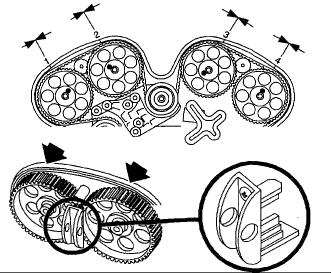

 Follow this diagram for the camshaft timing marks notes the pins
