Positive Crankcase Ventilation

- Last Edited: Aug 27, 2023
- Popularity: 312 Views


Positive Crankcase Ventilation (PCV) is an emissions control system used in internal combustion engines to manage and reduce the buildup of harmful gases and pollutants within the engine's crankcase. The PCV system is designed to maintain proper crankcase ventilation while preventing the release of pollutants into the environment.

Here's how the PCV system works:

Crankcase Gases: As an engine operates, there are small amounts of gases, including unburned hydrocarbons and blow-by gases (combustion gases that leak past the piston rings into the crankcase), that accumulate within the engine's crankcase. These gases can lead to increased pressure, oil contamination, and contribute to air pollution if released into the atmosphere.

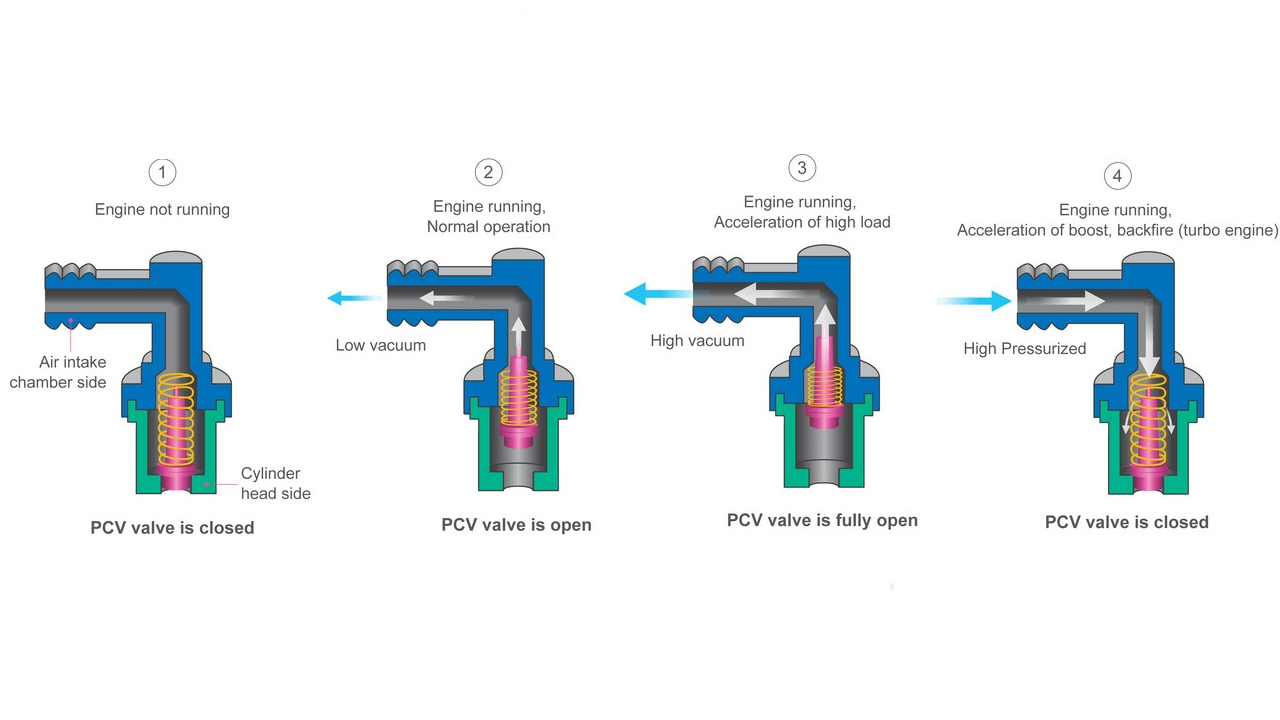

PCV Valve: The PCV system includes a PCV valve that is connected to the engine's intake manifold and the crankcase. The PCV valve regulates the flow of crankcase gases. When the engine is running, the PCV valve allows a controlled amount of these gases to be drawn from the crankcase into the intake manifold, where they are burned along with the air-fuel mixture in the combustion chambers.

Combustion and Emission Reduction: By routing the crankcase gases back into the combustion process, the PCV system helps reduce emissions of unburned hydrocarbons and other pollutants. It also prevents the buildup of pressure in the crankcase, which could lead to oil leaks or other engine issues.

Vacuum Assistance: The PCV system relies on engine vacuum to create the necessary suction for drawing crankcase gases into the intake manifold. As the engine runs, the vacuum generated by the movement of the pistons helps pull the gases through the PCV valve.

The PCV system requires periodic maintenance, including checking the PCV valve and ensuring proper ventilation pathways to prevent clogs or restrictions. A malfunctioning PCV system can lead to increased oil consumption, poor engine performance, and emissions problems.

Overall, Positive Crankcase Ventilation is an important emissions control technology that helps keep internal combustion engines running efficiently while reducing the environmental impact of harmful gases.
