Accelarator Pedal Sensor on Kia Sorento 2006 4WD

Question

Error code says no communication between pedal sensor and throttle position sensor. I recently put a new throttle position sensor as my old was having the same issue. Idling changes goes up and down. I don't see pedal sensor anywhere under the pedal. What could be the issue?
Thanks

Answer 1

You do not have a APP sensor, even if the code state a APP sensor. KIA has this problem when there is a problem with the APP sensor code and sets a APP code when it is suppose to be for the ETC (electronic throttle actuator) , You put a new TPS sensor , you would need to adjust the TPS.

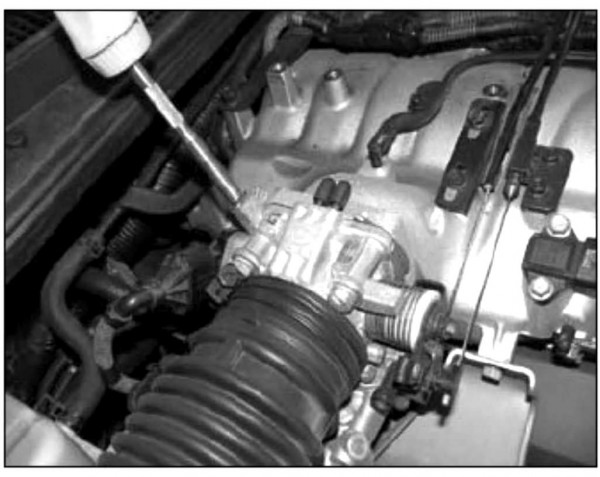

​ Here the location of the adjusting screw set to 800-900 RPM

Comments

Thanks for your answer Reynaldo. My idle RPM is good but when engine in running and i take of my foot from gas pedal, then the RPM is dropping suddenly and I can see like a small slow down in speed but again goes back to the normal RPM. What would be the reason you think?Appreciate your help.

Thank you

Chownari

---

Hi Reynaldo, also on Kia sorento 2006 where is idle valve control located? Electronic control module location as well?
Thank you

Chownari

---

You need to adjust the idle speed, the reason for the up and down idle is the TPS is no adjusted. If you repost I can send you instruction.

---

Could you please send me the instructions to set the idel speed on TPS.
Thank you
