P0171 Fuel trim lean Bank 1
P1135 A/F sensor heater circuit malfunction Bank 1 Sensor 1
P1155 A/F sensor heater circuit malfunction Bank 2 Sensor 1
P1130 A/F sensor circuit range Bank 1 Sensor 1
P1150 A/F sensor circuit range Bank 2 Sensor 1

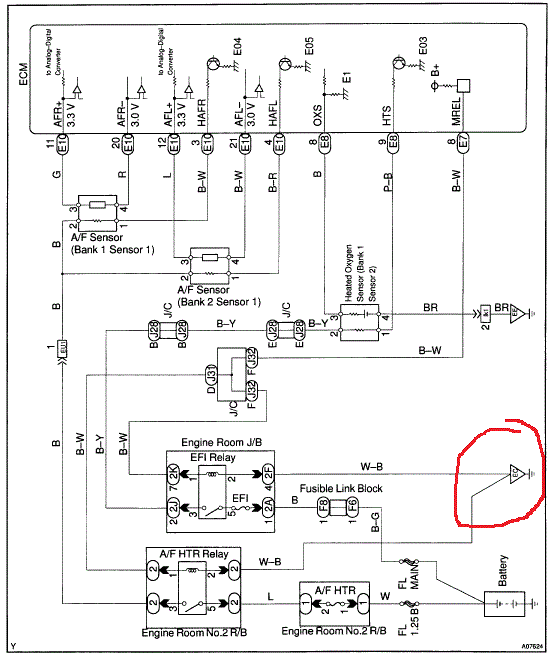

Four 02 codes , all similar these code consider it a screaming at you, this is wiring problem, when a 02 sensor fails , the fuel system goes lean, (ECM compensate with a substitute value), with these code what it will not do is stall the engine, what it has in common is a heater relay, and the EFI relay, check the ground for this this is a direction that has to be ruled out,
This ground that is listed here check that make sure it is connected , Because of P1135 and P1155 replace the A/F heater relay, (it not adviseable to swap it out, but at this point for test it okay) and check the fuse.
