What color wire for fuel sensor in harness under driver door on a 2006 Ford F150?

1 like 0 dislike
479 views
by

What color wire for the fuel sensor in the harness under the driver door on a 2006 Ford F150? fuel gauge not working wire harness cover was full of debris and held moisture

Vehicle: 2006 Ford F150

1 Answer

1 like 0 dislike
by (13.5k points)

Best answer

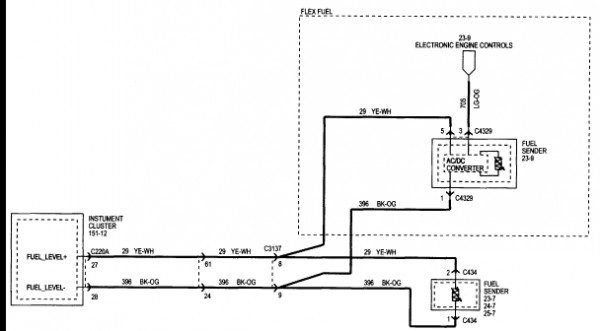

For the instrument panel the wire diagram

Ford F150 Fuel Wire Diagram
