P0106 HYUNDAI

P0106 HYUNDAI - Manifold Absolute Pressure/Barometric Pressure Circuit Range/Performance Problem

Repair Importance Level: 3/3
Repair Difficulty Level: 2/3
Comments  |  Add Comment

P0106 HYUNDAI Possible Causes

  • Faulty Manifold Absolute Pressure sensor
  • Manifold Absolute Pressure harness is open or shorted
  • Manifold Absolute Pressure sensor circuit poor electrical connection
  • Faulty Powertrain Control Module (PCM)

First diagnose P0106 HYUNDAI code

    Check the "Possible Causes" listed above. Visually inspect the related wiring harness and connectors. Check for damaged components and look for broken, bent, pushed out, or corroded terminals.

P0106 HYUNDAI Tech Notes

According to some AutoCodes.com users, the code could be triggered by disconnecting or recharging the car battery. Before replacing any parts, clear the code and drive your vehicle for more than 50 miles and/or a few days.

Cost of diagnosing the P0106 HYUNDAI code

    Labor: 1.0

    The cost of diagnosing the P0106 HYUNDAI code is 1.0 hour of labor. The auto repair labor rates vary by location, your vehicle's make and model, and even your engine type. Most auto repairs shops charge between $75 and $150 per hour.

When is the P0106 HYUNDAI code detected?

An excessively low or high voltage from the sensor is sent to Powertrain Control Module (PCM)

P0106 HYUNDAI Possible Symptoms

  • Engine Light ON (or Service Engine Soon Warning Light)
  • Engine rough idle
  • Engine hesitation

P0106 Hyundai Description

The amount of intake air flow must be inputted to Powertrain Control Module (PCM) in order to determine the fuel injection quantity. MAPS(Manifold Absolute Pressure) calculates the amount of air indirectly as measuring the pressure inside of intake manifold. This mechanism is also called Speed-Density Type. MAPS transfers analog output signal which is proportional to the change of intake manifold pressure, then, with this signal and RPM, PCM calculates the amount of intake air flow. MAPS is mounted on surge tank to measure the pressure inside of intake manifold, and it consists of a piezo electric element and hybrid IC which amplifies output signal from the element. A piezo electric element is a sort of a diaphragm using piezo electric effect. One side of the diaphragm is surrounded with vacuum chamber while intake pressure is applied to the other side. Thus, signals are outputted by the transformation of diagphragm according to the change of pressure inside of intake manifold.

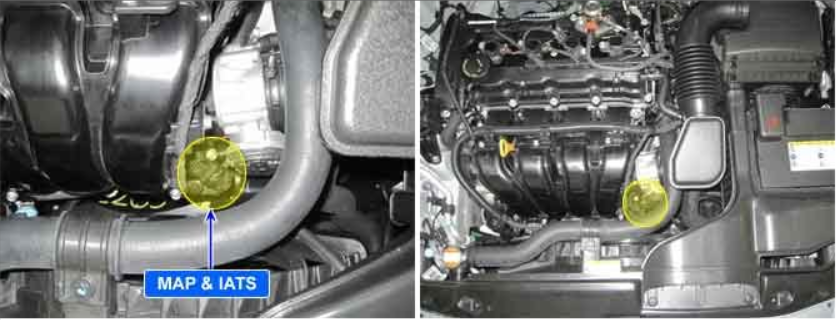

2009 Hyundai Sonata Manifold Absolute Pressure/Barometric Pressure Location:

OBDII Code P0106 Hyundai - Manifold Absolute Pressure/Barometric Pressure Circuit Range/Performance Problem - AutoCodes.com
