What does a P0300 code signify, and how do I diagnose it?

P0300 Code Cylinder Misfire Detected Random Cylinders

A "P0300" code indicates a random or multiple cylinder misfire detected by the OBD-II system. When the engine control module (ECM) detects misfires, it assigns a specific code to each affected cylinder (e.g., P0301 for cylinder 1, P0302 for cylinder 2, and so on). However, if the misfires occur randomly across multiple cylinders, the ECM generates a "P0300" code.

Misfires occur when one or more cylinders fail to ignite the air-fuel mixture correctly. This can lead to rough idling, loss of power, increased exhaust emissions, and reduced fuel efficiency. Diagnosing the specific cause of a "P0300" code requires a systematic approach.

Start by using an OBD-II scanner to read the freeze frame data associated with the code. The freeze frame data captures crucial parameters, such as engine RPM, vehicle speed, and fuel trim values at the time the code was set. This information can provide insight into the conditions that led to the misfires.

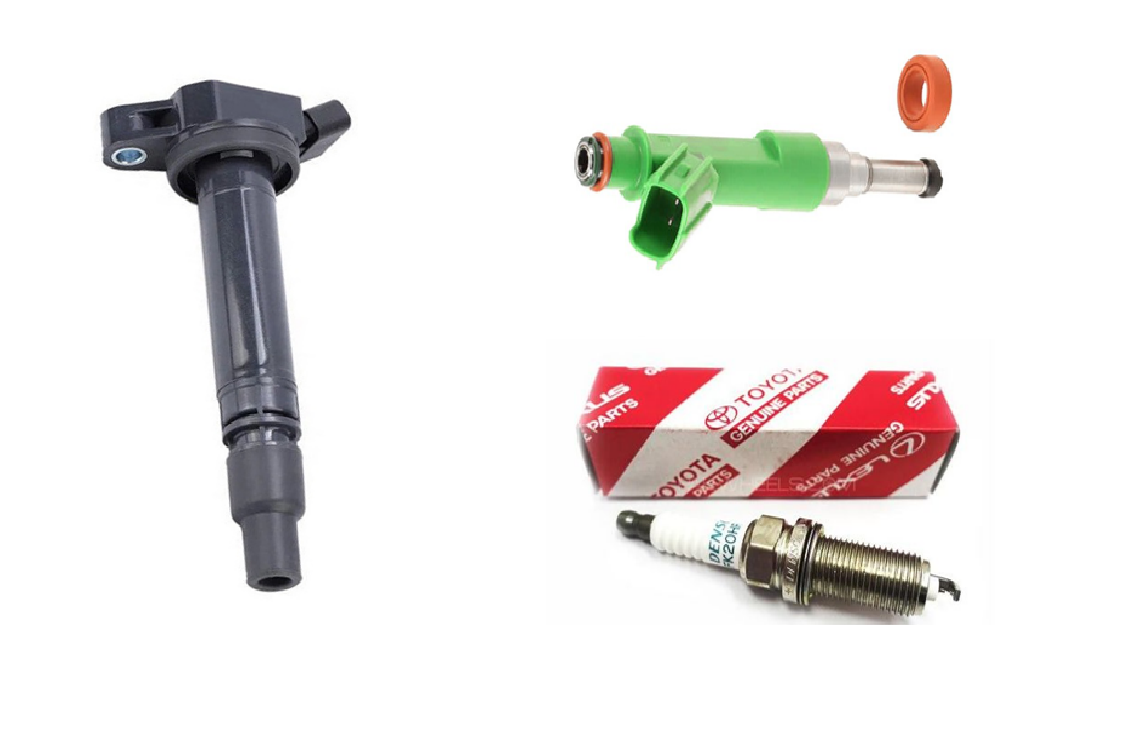

After retrieving the freeze frame data, perform a visual inspection of the engine components, including the spark plugs, ignition coils, and fuel injectors. Look for signs of wear, damage, or contamination. Worn or fouled spark plugs, faulty ignition coils, and clogged fuel injectors are common causes of misfires.

If the visual inspection doesn't reveal any obvious issues, consider conducting a cylinder compression test to check the health of the engine's internal components. Low compression in one or more cylinders can lead to misfires.

Additionally, use an OBD-II scanner to monitor live data, including fuel trims, oxygen sensor readings, and misfire counts. Analyzing this data can help pinpoint the specific cylinder(s) experiencing misfires.

To diagnose more elusive misfires, consider performing a cylinder power balance test. This test involves momentarily disabling each cylinder one by one while monitoring engine RPM changes. If the RPM drop is consistent when disabling a specific cylinder, it indicates a misfire in that cylinder.

Properly diagnosing and resolving a "P0300" code may require advanced diagnostic tools and technical expertise. If you're unsure about the diagnosis or need assistance, it's recommended to consult a qualified mechanic who can accurately identify the cause of the misfires and perform the necessary repairs.
