P2507 Hyundai Code - PCM Input Signal Low
Quick Answer
When the ignition switch is turned "ON", the battery voltage is applied from the battery to the Powertrain Control Module (PCM)/Engine Control Module (ECM) through the main relay. Common causes include Low battery voltage, Faulty Powertrain Control Module (PCM)/Engine Control Module (ECM), ECM/PCM harness is open or shorted. Severity is High - diagnose this code as soon as possible. Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
- What it means
- P2507 Hyundai indicates PCM Input Signal Low.
- Common causes
- Common causes include Low battery voltage, Faulty Powertrain Control Module (PCM)/Engine Control Module (ECM), ECM/PCM harness is open or shorted.
- Severity
- High - diagnose this code as soon as possible.
- Can I drive?
- Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
Code P2507 Hyundai Description
What are the Possible Causes of the DTC P2507 Hyundai?
- Low battery voltage
- Faulty Powertrain Control Module (PCM)/Engine Control Module (ECM)
- ECM/PCM harness is open or shorted
- ECM/PCM circuit poor electrical connection
How to Fix the DTC P2507 Hyundai?
Review the 'Possible Causes' above and visually examine the corresponding wiring harness and connectors. Check for damaged components and inspect connector pins for signs of being broken, bent, pushed out, or corroded.
What is the Cost to Diagnose the Code?
Labor: 1.0
To diagnose the P2507 Hyundai code, it typically requires 1.0 hour of labor. Rates vary by location, vehicle, and shop. Many shops charge between $80–$150 per hour; dealerships and metro areas may be higher, independents may be lower.
Need more information about the P2507 Hyundai code?
Need more information on how to fix the P2507 Hyundai code? Get Access to Factory Service Manuals
Need Help with the Code?
Get the P2507 Hyundai code diagnosed by a professional: Find a repair shop in your area
Frequently Asked Questions about P2507 Hyundai Code
1. What are the common symptoms of OBDII code P2507 (PCM Input Signal Low) in a Hyundai?
- Common symptoms include engine stalling, rough idling, poor acceleration, and the illumination of the check engine light.
2. What are the possible causes of OBDII code P2507 in a Hyundai?
- The code P2507 is typically caused by a faulty PCM (Powertrain Control Module), damaged wiring or connectors, or a weak battery.
3. How can I diagnose OBDII code P2507 in my Hyundai?
- To diagnose code P2507, it is recommended to use a diagnostic scan tool to retrieve the fault code and perform a thorough inspection of the PCM, wiring, and battery connections.
4. Can a weak battery cause OBDII code P2507 in a Hyundai?
- Yes, a weak or failing battery can trigger code P2507 due to insufficient power supply to the PCM, resulting in low input signal readings.
5. What are the repair options for OBDII code P2507 in a Hyundai?
- Repair options include repairing or replacing damaged wiring, connectors, or the PCM itself. It is also important to ensure the battery is in good condition and properly connected.
6. Is it safe to continue driving my Hyundai with OBDII code P2507 present?
- It is not recommended to continue driving with code P2507 present, as it can lead to further engine performance issues and potential vehicle breakdowns.
7. Can I reset OBDII code P2507 in my Hyundai using a scan tool?
- Yes, the code can be reset using a scan tool after the underlying issue has been diagnosed and repaired. However, if the problem persists, the code is likely to reappear.
8. How much does it typically cost to repair OBDII code P2507 in a Hyundai?
- The cost of repairing code P2507 can vary depending on the specific cause of the issue. Repairs may range from simple wiring fixes to PCM replacement, with costs ranging from a few hundred to over a thousand dollars.
9. Will OBDII code P2507 cause any long-term damage to my Hyundai if left unaddressed?
- Ignoring code P2507 can potentially lead to more severe engine issues and damage if left unaddressed for an extended period of time, so it is advisable to address the problem promptly.
10. Can a DIY enthusiast fix OBDII code P2507 in a Hyundai, or is it best left to professionals?
- While some basic diagnostics and repairs can be done by DIY enthusiasts, diagnosing and fixing code P2507 may require advanced knowledge and tools, so it is often best to consult with a professional mechanic for accurate diagnosis and repair.
Discuss the causes and fixes for P2507 Hyundai OBDII Code
-
P2507 code/ Hyundai '07 santa fe--- 54,000 miles DTC occurs on occasion, then clears on its own. " PCM, faulty PCM. connection, or open wire" is the condition. Cleaned PCM connections, and battery and terminals have been replaced .Anyone with experience: what would you do first since it intermittent for about 5 years
-
Unfortunately I haven't had that problem before and there is no much information if the factory service manual either.

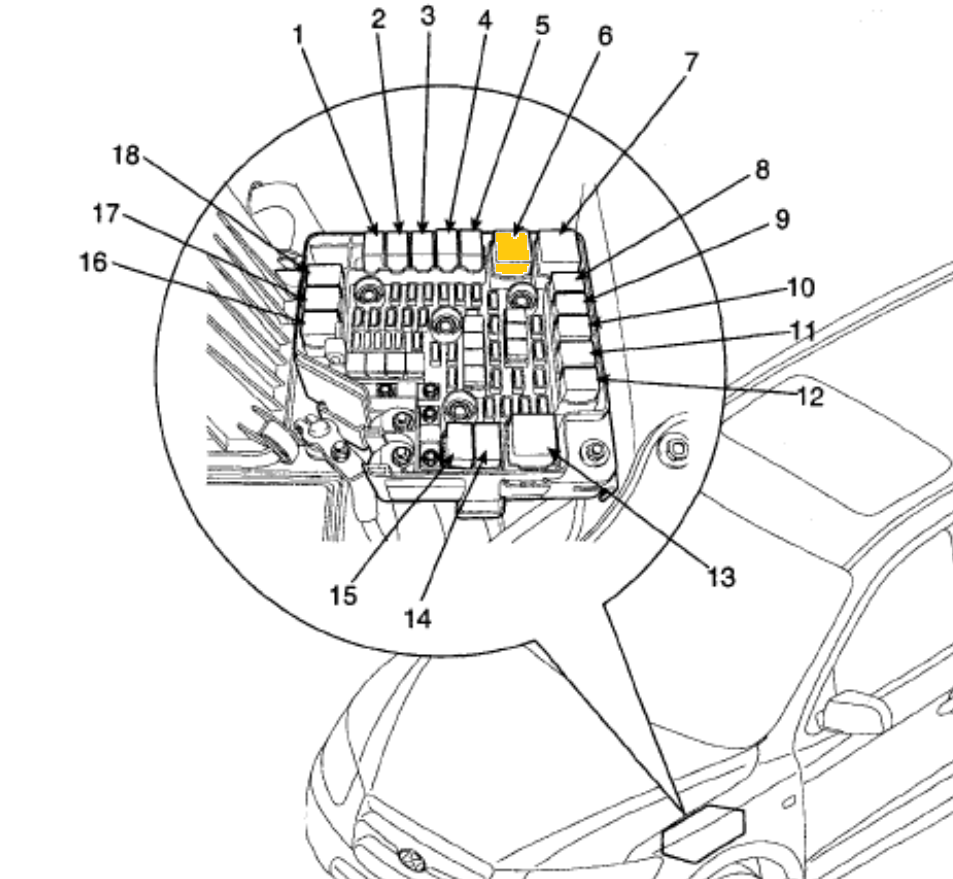

Looks like at some point no power is getting to the PCM, since finding a poor connection may be difficult, I recommend try replacing the PCM main relay. Replacing the Relay should be easy and inexpensive and worth to try.Relay #6 on the image:
Click here to enlarge image
