P16BB Honda Code - Alternator 'B' Terminal Circuit Low Voltage
Quick Answer
The alternator is driven by the engine and generates electricity to supply the necessary power to the electrical system and to charge the battery. Common causes include Faulty Alternator, Alternator harness is open or shorted, Alternator circuit poor electrical connection. Severity is High - diagnose this code as soon as possible. Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
- What it means
- P16BB Honda indicates Alternator 'B' Terminal Circuit Low Voltage.
- Common causes
- Common causes include Faulty Alternator, Alternator harness is open or shorted, Alternator circuit poor electrical connection.
- Severity
- High - diagnose this code as soon as possible.
- Can I drive?
- Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
Code P16BB Honda Description
When the engine speed is a specified value and the IGP terminal voltage is below a set value when the alternator is in the 14.5 V mode, and the alternator power generation amount is within the set range and this condition continues more than a set time, the PCM detects a malfunction and a Diagnostic Trouble Code (DTC) is stored.
What are the Possible Causes of the DTC P16BB Honda?
- Faulty Alternator
- Alternator harness is open or shorted
- Alternator circuit poor electrical connection
How to Fix the DTC P16BB Honda?
Review the 'Possible Causes' above and visually examine the corresponding wiring harness and connectors. Check for damaged components and inspect connector pins for signs of being broken, bent, pushed out, or corroded.
What is the Cost to Diagnose the Code?
Labor: 1.0
To diagnose the P16BB Honda code, it typically requires 1.0 hour of labor. Rates vary by location, vehicle, and shop. Many shops charge between $80–$150 per hour; dealerships and metro areas may be higher, independents may be lower.
Need more information about the P16BB Honda code?
Need more information on how to fix the P16BB Honda code? Get Access to Factory Service Manuals
Need Help with the Code?
Get the P16BB Honda code diagnosed by a professional: Find a repair shop in your area
Frequently Asked Questions about P16BB Honda Code
No Frequently Asked Questions about P16BB Honda Code found.
Discuss the causes and fixes for P16BB Honda OBDII Code
-
I think the information above should include some basic diagnostic guide.
I was made to change the alternator on my Honda crv 2007 model three (3) times but the battery light keeps on coming intermittently. -

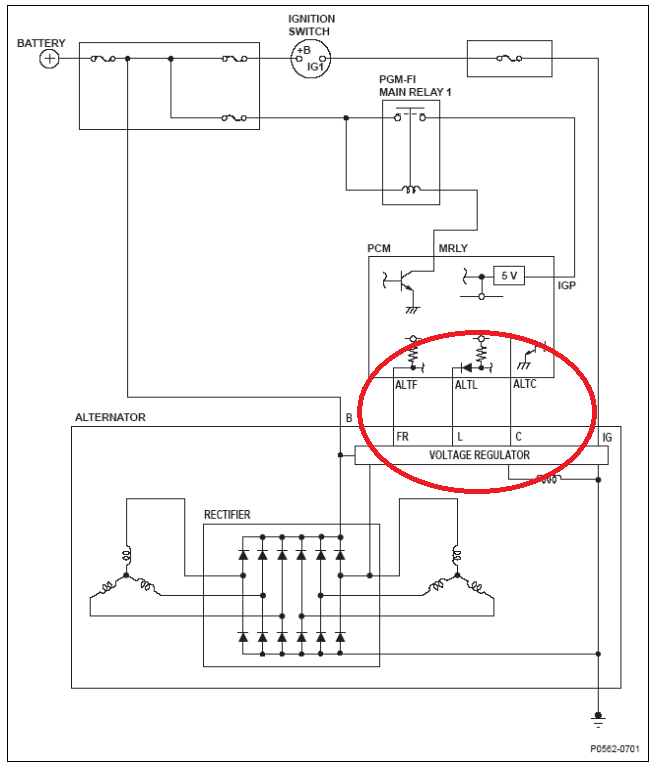

Did you use a new factory alternator? if you did, then the next step is to check the wires from the alternator to the PCM
Click here to enlarge image -
this just happened to my 08 SI changed the alternator and battery and light still comes on. checked my fuse box and looks like there was a short somewhere and it burned my fuse box where the connections go (positive and negative) hopefully switching the fuse box fixes the issue and ill be done with that nightmare
