P1136 2004 Nissan Maxima Code - Intake Valve Timing Control Solenoid Valve Circuit Bank 2
Quick Answer
The intake valve timing control solenoid valve is activated by ON/OFF pulse duty (ratio) signals from the Engine Control Module (ECM). Common causes include Faulty Intake Valve Timing Control Solenoid Bank 2, Intake Valve Timing Control Solenoid Bank 2 harness is open or shorted, Intake Valve Timing Control Solenoid Bank 2 circuit poor electrical connection. Severity is High - diagnose this code as soon as possible. Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
- What it means
- P1136 2004 Nissan Maxima indicates Intake Valve Timing Control Solenoid Valve Circuit Bank 2.
- Common causes
- Common causes include Faulty Intake Valve Timing Control Solenoid Bank 2, Intake Valve Timing Control Solenoid Bank 2 harness is open or shorted, Intake Valve Timing Control Solenoid Bank 2 circuit poor electrical connection.
- Severity
- High - diagnose this code as soon as possible.
- Can I drive?
- Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
Code P1136 2004 Nissan Maxima Description
The longer pulse width advances the valve angle. The shorter pulse width retards the valve angle.
When ON and OFF pulse widths become equal, the solenoid valve stops oil pressure flow to fix the intake valve angle at the control position.
The Diagnostic Trouble Code (DTC) when an improper voltage is sent to the ECM through the intake valve timing control solenoid valve.
What are the Possible Causes of the DTC P1136 2004 Nissan Maxima?
- Faulty Intake Valve Timing Control Solenoid Bank 2
- Intake Valve Timing Control Solenoid Bank 2 harness is open or shorted
- Intake Valve Timing Control Solenoid Bank 2 circuit poor electrical connection
How to Fix the DTC P1136 2004 Nissan Maxima?
Review the 'Possible Causes' above and visually examine the corresponding wiring harness and connectors. Check for damaged components and inspect connector pins for signs of being broken, bent, pushed out, or corroded.
Code Tech Notes
What is the Cost to Diagnose the Code?
Labor: 1.0
To diagnose the P1136 2004 Nissan Maxima code, it typically requires 1.0 hour of labor. Rates vary by location, vehicle, and shop. Many shops charge between $80–$150 per hour; dealerships and metro areas may be higher, independents may be lower.
Need more information about the P1136 2004 Nissan Maxima code?
Need more information on how to fix the P1136 2004 Nissan Maxima code? Get Access to Factory Service Manuals
Need Help with the Code?
Get the P1136 2004 Nissan Maxima code diagnosed by a professional: Find a repair shop in your area
Frequently Asked Questions about P1136 2004 Nissan Maxima Code
1. What are common symptoms of OBDII code P1136 in a 2004 Nissan Maxima related to the Intake Valve Timing Control Solenoid Valve Circuit Bank 2?
- Common symptoms include poor engine performance, reduced fuel efficiency, and potential stalling or rough idling.
2. What could be the possible causes of OBDII code P1136 in a 2004 Nissan Maxima?
- The code could be triggered by a faulty intake valve timing control solenoid valve, wiring issues, or a malfunctioning engine control module (ECM).
3. How can I diagnose the Intake Valve Timing Control Solenoid Valve Circuit Bank 2 issue in my 2004 Nissan Maxima?
- A thorough inspection of the solenoid valve, checking the wiring for any damage, and using a diagnostic scanner to read the ECM codes can help diagnose the problem.
4. Can I continue driving my 2004 Nissan Maxima with OBDII code P1136 present?
- It is not recommended to drive the vehicle with this code active as it can lead to further engine damage and potential safety issues.
5. How is OBDII code P1136 related to the Intake Valve Timing Control Solenoid Valve Circuit Bank 2 repaired in a 2004 Nissan Maxima?
- Repair typically involves replacing the faulty intake valve timing control solenoid valve, repairing any damaged wiring, and clearing the ECM codes.
6. Is it possible to reset the OBDII code P1136 in a 2004 Nissan Maxima without fixing the underlying issue?
- While you can clear the code temporarily, it will likely reappear if the root cause of the problem, such as a faulty solenoid valve, is not addressed.
7. How much does it cost to repair OBDII code P1136 in a 2004 Nissan Maxima at a professional auto repair shop?
- Repair costs can vary depending on the exact cause of the issue, but expect to pay anywhere from $200 to $500 for parts and labor.
8. Are there any preventive maintenance steps I can take to avoid OBDII code P1136 in my 2004 Nissan Maxima?
- Regularly servicing your vehicle, including checking and replacing worn-out components like the intake valve timing control solenoid valve, can help prevent this code from occurring.
9. Can a DIY enthusiast with basic automotive knowledge fix OBDII code P1136 in a 2004 Nissan Maxima?
- While some may attempt the repair themselves, it is recommended to consult a professional mechanic due to the complexity of the Intake Valve Timing Control Solenoid Valve Circuit Bank 2 system.
10. How urgent is it to address OBDII code P1136 in a 2004 Nissan Maxima once it has been detected?
- It is advisable to address the issue promptly to prevent further damage to the engine and ensure optimal performance of your vehicle.
Discuss the causes and fixes for P1136 2004 Nissan Maxima OBDII Code
-

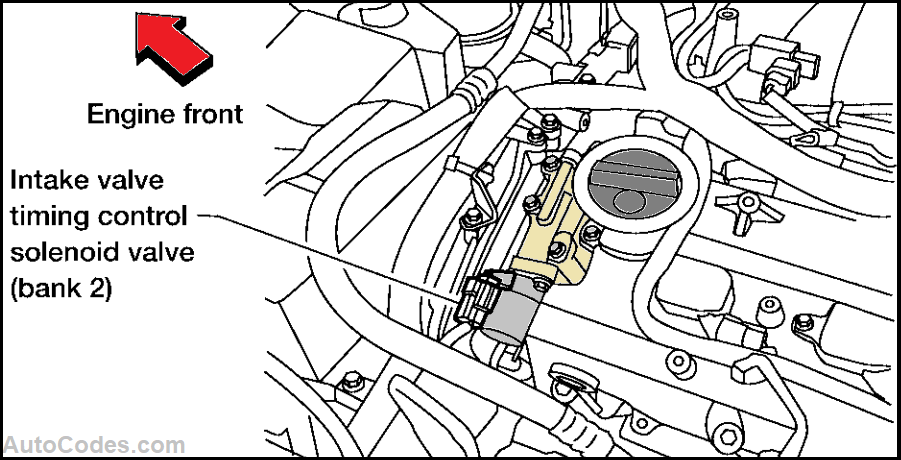

If changing the engine oil didn't fixed the problem, then your next step is to replace the Intake Valve Timing Control Solenoid Bank 2.
Click here to enlarge image
