P0AA6 KIA Code - Hybrid Battery Voltage System Isolation Fault

Quick Answer

To prevent human electrical shock, the High Voltage Battery has been insulated from the body of the vehicle. Common causes include Faulty Hybrid battery pack, Faulty Hybrid battery high voltage cable, Faulty MCU. Severity is High - diagnose this code as soon as possible. Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.

What it means: P0AA6 KIA indicates Hybrid Battery Voltage System Isolation Fault.
Common causes: Common causes include Faulty Hybrid battery pack, Faulty Hybrid battery high voltage cable, Faulty MCU.
Severity: High - diagnose this code as soon as possible.
Can I drive?: Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.

Save to My Repairs My Repairs

AI answers can be wrong. Verify repairs with testing. Open full chat

Code Popularity 3,080

How popular is this code, among other codes? Low

Repair Importance Level

Urgent (Diagnose now) (3 / 3)

Repair Difficulty Level

Advanced (Pro) (3 / 3)

What is this?

Table of contents Created and updated by William Orellana on Oct 20, 2022

Description
Possible Causes
How To Fix
Cost to Diagnose
FAQs
Comments
Add Comment

💬 Need more help? Ask Coddy for instant answers — it's free!

Code P0AA6 KIA Description

To prevent human electrical shock, the High Voltage Battery has been insulated from the body of the vehicle. The Body Managing System (BMS) ECU self-checks the degree of insulation. If the degree of insulation is less than a constant value, it could cause the risk of electric shock.
The Diagnostic Trouble Code (DTC) P0AA6 will be set when the BMS ECU insulation value between the high voltage line and the body gets under 300â„¦.

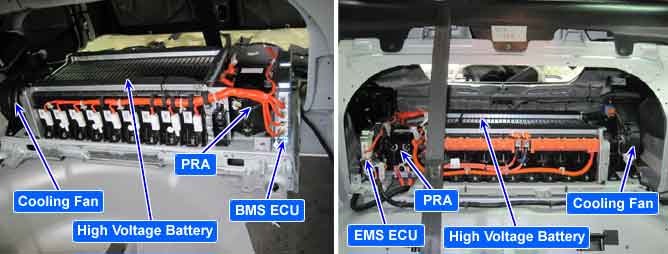

OBDII Code P0AA6 KIA - Hybrid Battery Voltage System Isolation Fault - AutoCodes.com — P0AA6 KIA Code - Hybrid Battery Voltage System Isolation Fault

What does this mean?

What are the Possible Causes of the DTC P0AA6 KIA?

Faulty Hybrid battery pack
Faulty Hybrid battery high voltage cable
Faulty MCU
Faulty Hybrid motor
Faulty LDC
Faulty HSG
Faulty BMS ECU
Faulty Electric A/C Compressor

How to Fix the DTC P0AA6 KIA?

Review the 'Possible Causes' above and visually examine the corresponding wiring harness and connectors. Check for damaged components and inspect connector pins for signs of being broken, bent, pushed out, or corroded.

What is the Cost to Diagnose the Code?

Labor: 1.0

To diagnose the P0AA6 KIA code, it typically requires 1.0 hour of labor. Rates vary by location, vehicle, and shop. Many shops charge between $80–$150 per hour; dealerships and metro areas may be higher, independents may be lower.

Need more information about the P0AA6 KIA code?

Need more information on how to fix the P0AA6 KIA code? Get Access to Factory Service Manuals

Need Help with the Code?

Get the P0AA6 KIA code diagnosed by a professional: Find a repair shop in your area

About the author: William Orellana is a Master Mechanic and Mechanical Engineer with over 30 years of experience diagnosing and repairing vehicles. Learn more about his background.

Frequently Asked Questions about P0AA6 KIA Code

1. What does the OBDII code P0AA6 mean on a Kia vehicle?

P0AA6 indicates a Hybrid Battery Voltage System Isolation Fault, meaning the hybrid system has detected a loss of electrical isolation between the high-voltage battery and the vehicle's chassis.

2. What are common symptoms of the P0AA6 code in a Kia hybrid?

Symptoms may include the hybrid system warning light illuminating, reduced fuel efficiency, limited hybrid functionality, or the vehicle failing to start.

3. What causes the P0AA6 code in a Kia hybrid?

Common causes include moisture intrusion in the high-voltage battery, damaged insulation on high-voltage cables, a faulty battery pack, or corrosion around electrical connections.

4. Can I continue driving with the P0AA6 code active?

It is not recommended to drive with this code active, as it indicates a potential safety risk due to high-voltage system faults.

5. How is the P0AA6 code diagnosed in Kia vehicles?

Technicians use a scan tool to confirm the code, inspect the high-voltage battery for damage or moisture, and test the isolation resistance of the high-voltage system.

6. What repairs are needed to fix a P0AA6 code on a Kia hybrid?

Repairs may include sealing or replacing the high-voltage battery, repairing damaged wiring, replacing corroded terminals, or addressing water intrusion issues.

7. Can a low 12-volt battery cause the P0AA6 code to appear?

While unlikely, a low 12-volt battery can sometimes cause unusual fault codes; however, P0AA6 typically points to an issue in the high-voltage system.

8. How much does it cost to repair a P0AA6 code on a Kia hybrid?

Repair costs can vary widely, ranging from a few hundred dollars for wiring repairs to several thousand dollars if the high-voltage battery needs replacement.

9. What can I do to prevent the P0AA6 code in my Kia hybrid?

Regular maintenance, keeping the high-voltage battery compartment dry, and promptly addressing any hybrid system warnings can help prevent this issue.

10. Is the P0AA6 code covered under Kia's hybrid warranty?

In many cases, the high-voltage battery and related components are covered under Kia's hybrid system warranty, but coverage details depend on the vehicle's age and mileage.
