AutoCodes – Cadillac – P0430 Cadillac

P0430 Cadillac Code - Catalyst System Low Efficiency Bank 2

Quick Answer

A 3-way catalyst controls emissions of hydrocarbons, Carbon Monoxide (CO), and Nitrogen Oxide (NOx). Common causes include Faulty Three-way Catalyst Converter Bank 2, Exhaust Tube, Intake Air Leaks. Severity is Moderate - service should be scheduled soon. The vehicle may still be drivable for short trips if it runs normally, but avoid hard driving and repair it soon.

What it means
P0430 Cadillac indicates Catalyst System Low Efficiency Bank 2.
Common causes
Common causes include Faulty Three-way Catalyst Converter Bank 2, Exhaust Tube, Intake Air Leaks.
Severity
Moderate - service should be scheduled soon.
Can I drive?
The vehicle may still be drivable for short trips if it runs normally, but avoid hard driving and repair it soon.
Save to My Repairs Step-by-Step Diagnostic Guide My Repairs
AI answers can be wrong. Verify repairs with testing. Open full chat
Code Popularity 71,627
How popular is this code, among other codes? Medium
What is this?
Table of contents Created and updated by William Orellana on Jun 20, 2022
💬 Need more help? Ask Coddy for instant answers — it's free!

Code P0430 Cadillac Description

A 3-way catalyst controls emissions of hydrocarbons, Carbon Monoxide (CO), and Nitrogen Oxide (NOx). The catalyst within the converter promotes a chemical reaction, which oxidizes the hydrocarbons and the CO that are present in the exhaust gas. This process converts the hydrocarbons and the CO into water vapor and carbon dioxide (CO2), and reduces the NOx, converting the NOx into nitrogen. The catalyst also stores oxygen. The Engine Control Module (ECM) monitors this process by using Heated Oxygen Sensors (HO2S) that are in the exhaust stream before and after the 3- way catalyst. The HO2S produces an output signal that the ECM uses to calculate the oxygen storage capacity of the catalyst. This indicates the ability of the catalyst to convert the exhaust emissions efficiently. The ECM monitors the efficiency of the catalyst by monitoring the HO2S during an off-idle, Decel Fuel Cut-Off (DFCO) event. When the catalyst is functioning properly, the post-catalyst HO2S response to the fuel conditions during the DFCO event is slow compared to the response of the pre-catalyst HO2S. When the post-HO2S response is near that of the pre-HO2S, the oxygen storage capability and efficiency of the catalyst may be degraded below an acceptable threshold. The Diagnostic Trouble Code (DTC) will be set when the ECM determines that the efficiency of the catalyst has degraded below a calibrated threshold.
OBDII Code P0430 Cadillac - Catalyst System Low Efficiency Bank 2 - AutoCodes.com
P0430 Cadillac Code - Catalyst System Low Efficiency Bank 2
What does this mean?

What are the Possible Causes of the DTC P0430 Cadillac?

  • Faulty Three-way Catalyst Converter Bank 2
  • Exhaust Tube
  • Intake Air Leaks
  • Faulty Oxygen (O2) Sensor
  • Faulty Fuel injector(s)
  • Leaking Fuel Injector (s)
  • Faulty Spark plugs
  • Improper Ignition Timing
  • Faulty Engine Control Module (ECM)
  • Dirty Air Filter

How to Fix the DTC P0430 Cadillac?

Review the 'Possible Causes' above and visually examine the corresponding wiring harness and connectors. Check for damaged components and inspect connector pins for signs of being broken, bent, pushed out, or corroded.

What does this mean?

Code Tech Notes

As the code description implies the P0430 code means that the vehicle's control module has detected that the three-way catalytic converter is not working properly (it is not as efficient as the factory is expecting). Replacing the oxygen (O2) sensors may sometimes fix the code, but in most cases, the catalytic convert needs to be replaced to fix the problem. If the P0430 code is combined with other codes, try fixing the other codes first.

What is the Cost to Diagnose the Code?

Labor: 1.0

To diagnose the P0430 Cadillac code, it typically requires 1.0 hour of labor. Rates vary by location, vehicle, and shop. Many shops charge between $80–$150 per hour; dealerships and metro areas may be higher, independents may be lower.

Need more information about the P0430 Cadillac code?

Need more information on how to fix the P0430 Cadillac code? Get Access to Factory Service Manuals

Need Help with the Code?

Get the P0430 Cadillac code diagnosed by a professional: Find a repair shop in your area

About the author: William Orellana is a Master Mechanic and Mechanical Engineer with over 30 years of experience diagnosing and repairing vehicles. Learn more about his background.

Frequently Asked Questions about P0430 Cadillac Code

1. What are the common symptoms of OBDII code P0430 in a Cadillac, indicating Catalyst System Low Efficiency Bank 2?

- Common symptoms include decreased fuel efficiency, rough idling, and the illumination of the Check Engine Light.

2. What are the possible causes of OBDII code P0430 in a Cadillac?

- Potential causes include a faulty catalytic converter, oxygen sensor malfunction, exhaust leaks, or engine misfires.

3. How serious is OBDII code P0430 in a Cadillac, indicating Catalyst System Low Efficiency Bank 2?

- While the vehicle may still be drivable, ignoring this code can lead to increased emissions and potential damage to the catalytic converter.

4. Can I continue driving my Cadillac with OBDII code P0430 present?

- It is recommended to address the issue promptly to prevent further damage to the catalytic converter and ensure optimal vehicle performance.

5. What repairs are typically needed to resolve OBDII code P0430 in a Cadillac?

- Repairs may include replacing the catalytic converter, repairing the exhaust system, replacing oxygen sensors, or addressing engine misfires.

6. How can I prevent OBDII code P0430 from occurring in my Cadillac in the future?

- Regular maintenance, such as timely replacement of oxygen sensors and addressing engine issues promptly, can help prevent this code from reoccurring.

7. Can a DIY enthusiast address OBDII code P0430 in a Cadillac, or is professional help necessary?

- While some may attempt DIY repairs, diagnosing and fixing the root cause of this code often requires professional expertise and specialized tools.

8. How can I reset the Check Engine Light after resolving OBDII code P0430 in my Cadillac?

- The Check Engine Light can be reset using an OBDII scanner or disconnecting the car battery for a few minutes, but it's best to ensure the underlying issue is fixed first.

9. Are there any common mistakes to avoid when dealing with OBDII code P0430 in a Cadillac?

- Avoid neglecting regular maintenance, using low-quality replacement parts, or ignoring related warning signs that could lead to the recurrence of this code.

10. How much should I expect to pay for repairs related to OBDII code P0430 in a Cadillac?

- Repair costs can vary depending on the specific issue, parts needed, and labor rates, but it's advisable to get estimates from trusted mechanics or dealerships.

Discuss the causes and fixes for P0430 Cadillac OBDII Code

Submit a New Comment

  • I just put the new pcm module on my 03 cts and the p0430 code came up! Never had that code. What could it be?

    Reply to Comment

  • Drove it around and passed inspection and bam came on.

    Reply to Comment

  • The P0430 code is for the Catalytic Converter. Replacing the Converter usually takes care of the problem.

    Reply to Comment

  • does it hurt to drive with this code p0430

    Reply to Comment

  • You get the P0430 code because you have a bad catalytic converter. Driving with a bad catalytic converter wont damage your vehicle, unless it gets really bad, but you will heard a loud rattling noise from the exhaust when that happens. Also, if you have a bad catalytic converter, you vehicle will fail the smog test.

    Reply to Comment

  • I replaced the catalytic converter now code still here

    Reply to Comment

  • What model and year is your Cadillac? did you use a new factory Catalytic Converter? how long ago did you replaced the Catalytic Converter? I apologize for all the questions, just need the information to help you diagnose the problem.

    Reply to Comment

  • Getting P0420 and P0430 after putting in a new down stream 02 sensor. '99 Cadi Escalade. I have to go back to redo emission test in two days. Please help.

    Reply to Comment

  • The P0420 and P0430 are for the Catalytic Converter, is some rare occasions, replacing the O2 sensor may take care of the codes, but you probably have to replace the Catalytic Converters to fix the problem.

    Reply to Comment

  • I have a 2005 Cadillac cts it just has 49,000 miles runs great check engine light came on about a month ago no change in performance my son checked air filter it wAs really bad he said maybe that's it as changed it car ran the same light still on so I had the code read it came up p0430 catalyst system efficiency below threshold bank2 and I need a catalytic converter at around $800 really with only 49,000 on it and I need it smogged in a week .

    Reply to Comment

  • Unfortunately, the catalytic converter is the most likely cause of the problem. You could try using high octane gas or a fuel additive for a couple of weeks.

    Reply to Comment

  • 2011 SRX 3.0 throwing P0430. Which catalytic converter needs to be replaced?

    Reply to Comment

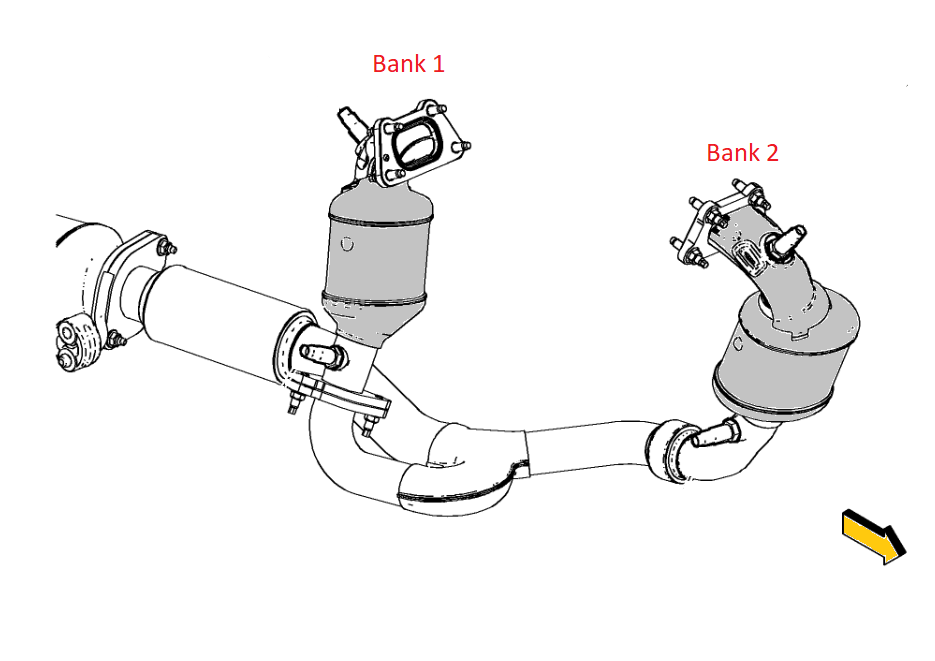

  • The P0430 is for the "Catalytic Converter Bank 2". Here is an image to help you identify the Catalytic Converter Bank 2
