P0420 Acura Code - Catalyst System Efficiency Below Threshold

- Code Popularity: 113,379 Views
- Repair Importance Level: 2/3
- Repair Difficulty Level: 2/3
Table of contents
Share on Facebook   Share on Twitter   Share on Linkedin

What are the Possible Causes of the DTC P0420 Acura?

NOTE: The causes shown may not be a complete list of all potential problems, and it is possible that there may be other causes.

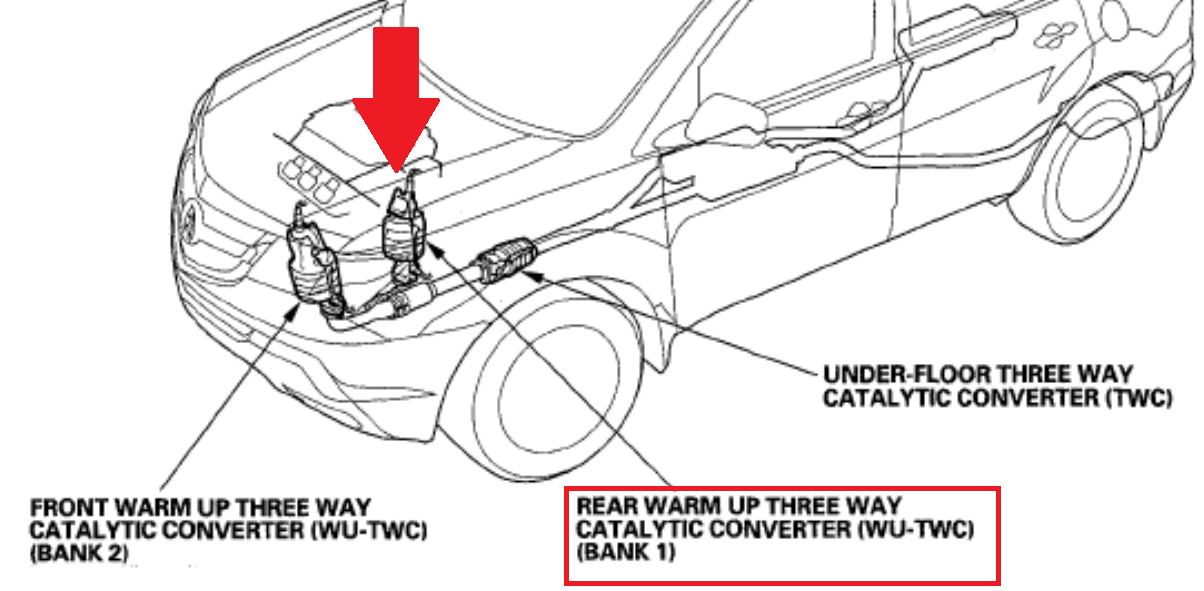

  • Faulty Three-Way Catalytic Converter (TWC)
  • Faulty Secondary Heated Oxygen Sensor (Secondary HO2S (Sensor 2))
  • Secondary Heated Oxygen Sensor 2 harness is open or shorted
  • Secondary Heated Oxygen Sensor 2 circuit poor electrical connection
⚠ Does your Acura have Safety Recalls? → Check here

How to Fix the DTC P0420 Acura?

Review the 'Possible Causes' mentioned above and visually examine the corresponding wiring harness and connectors. Ensure to check for any damaged components and inspect the connector pins for signs of being broken, bent, pushed out, or corroded.

Code Tech Notes

As the code description implies, the P0420 code means that the vehicle's Powertrain Control Module (PCM) has detected that the Three-way Catalyst Converter is not working properly (it is not as efficient as the factory expects). Replacing the oxygen (O2) sensors may sometimes fix the code, but in most cases, the Three-way Catalyst Converter needs to be replaced to resolve the problem. If the P0420 code is combined with other codes, try addressing the other codes first

Search for P0420 Acura Questions and Answers: Search here →

What is the Cost to Diagnose the Code?

Labor: 1.0

To diagnose the P0420 Acura code, it typically requires 1.0 hour of labor. The specific diagnosis time and labor rates at auto repair shops can differ based on factors such as the location, make and model of the vehicle, and even the engine type. It is common for most auto repair shops to charge between $75 and $150 per hour.

What are Code Possible Symptoms?

  • Engine Light ON (or Service Engine Soon Warning Light)

Code P0420 Acura Description

The Three-Way Catalytic Converter (TWC) converts Hydrocarbons (HC), Carbon Monoxide (CO), and Oxides of Nitrogen (NOx) in the exhaust gas to water vapor, Carbon Dioxide (CO 2), and Dinitrogen (N 2). The Powertrain Control Module (PCM) fluctuates the air/fuel ratio temporarily to detect the performance of the TWC and measures the degree of fluctuation in the Secondary Heated Oxygen Sensor (Secondary HO2S (Sensor 2)) output. If the accumulated value for a set time is too great, deterioration of the performance of the catalyst is detected, and the PCM detects a malfunction and stores a Diagnostic Trouble Code (DTC).
