P0401 1997 Toyota Camry Code - Exhaust Gas Recirculation Flow Insufficient Detected
Quick Answer
Early Exhaust Gas Recirculation (EGR) systems component s include and EGR Valve, and Engine Control Μodule (ECΜ) Controlled Vacuum Switch Valve or EGR Solenoid and an EGR Vacuum Μodulator. Common causes include EGR passage clogged, Faulty EGR Vacuum Modulator Valve, Faulty EGR Valve. Severity is Moderate - service should be scheduled soon. The vehicle may still be drivable for short trips if it runs normally, but avoid hard driving and repair it soon.
- What it means
- P0401 1997 Toyota Camry indicates Exhaust Gas Recirculation Flow Insufficient Detected.
- Common causes
- Common causes include EGR passage clogged, Faulty EGR Vacuum Modulator Valve, Faulty EGR Valve.
- Severity
- Moderate - service should be scheduled soon.
- Can I drive?
- The vehicle may still be drivable for short trips if it runs normally, but avoid hard driving and repair it soon.
Code P0401 1997 Toyota Camry Description
The EGR system on recently built vehicles uses a step motor to control the flow rate of EGR from exhaust manifold. This motor has four winding phases. It operates according to the output pulse signal of the ECΜ. Two windings are turned ON and OFF in sequence. Each time an ON pulse is issued, the valve opens or closes, changing the flow rate. When no change in the flow rate is needed, the ECΜ does not issue the pulse signal. Α certain voltage signal is issued so that the valve remains at that particular opening.
What are the Possible Causes of the DTC P0401 1997 Toyota Camry?
- EGR passage clogged
- Faulty EGR Vacuum Modulator Valve
- Faulty EGR Valve
- Faulty EGR solenoid valve
- EGR solenoid valve harness is open or shorted
- EGR solenoid valve circuit poor electrical connection
- Dead (Weak) battery
- Faulty EGR temperature sensor and circuit
- Exhaust gas leaks
- Manifold absolute pressure sensor
How to Fix the DTC P0401 1997 Toyota Camry?
Review the 'Possible Causes' above and visually examine the corresponding wiring harness and connectors. Check for damaged components and inspect connector pins for signs of being broken, bent, pushed out, or corroded.
Code Tech Notes
What is the Cost to Diagnose the Code?
Labor: 1.0
To diagnose the P0401 1997 Toyota Camry code, it typically requires 1.0 hour of labor. Rates vary by location, vehicle, and shop. Many shops charge between $80–$150 per hour; dealerships and metro areas may be higher, independents may be lower.
Need more information about the P0401 1997 Toyota Camry code?
Need more information on how to fix the P0401 1997 Toyota Camry code? Get Access to Factory Service Manuals
Need Help with the Code?
Get the P0401 1997 Toyota Camry code diagnosed by a professional: Find a repair shop in your area
Frequently Asked Questions about P0401 1997 Toyota Camry Code
1. What are the common symptoms of OBDII code P0401 in a 1997 Toyota Camry?
The common symptoms of code P0401 in a 1997 Toyota Camry include rough idling, reduced fuel efficiency, and the illumination of the check engine light.
2. What are the possible causes of OBDII code P0401 in a 1997 Toyota Camry?
The potential causes of code P0401 in a 1997 Toyota Camry are a faulty EGR valve, clogged EGR passages, a malfunctioning EGR temperature sensor, or a problem with the EGR vacuum modulator.
3. How can I diagnose OBDII code P0401 in a 1997 Toyota Camry?
To diagnose code P0401 in a 1997 Toyota Camry, you can perform a visual inspection of the EGR system, check the EGR valve operation, test the EGR temperature sensor, and inspect the vacuum lines connected to the EGR components.
4. What are some repair tips for fixing OBDII code P0401 in a 1997 Toyota Camry?
Some repair tips for resolving code P0401 in a 1997 Toyota Camry include cleaning the EGR valve and passages, replacing a faulty EGR valve, checking and replacing the EGR temperature sensor, and ensuring proper vacuum supply to the EGR components.
5. Can a clogged catalytic converter cause OBDII code P0401 in a 1997 Toyota Camry?
While a clogged catalytic converter can contribute to exhaust flow issues, it is not a direct cause of OBDII code P0401 in a 1997 Toyota Camry. The code specifically indicates insufficient EGR flow detected.
6. Is it safe to continue driving with OBDII code P0401 in a 1997 Toyota Camry?
It is generally not recommended to drive for an extended period with code P0401 in a 1997 Toyota Camry as it can lead to reduced engine performance and potentially cause damage to other components over time.
7. How much does it typically cost to repair OBDII code P0401 in a 1997 Toyota Camry?
The cost of repairing code P0401 in a 1997 Toyota Camry can vary depending on the specific cause of the issue and the labor rates in your area. It is advisable to get a diagnosis from a mechanic to determine the exact cost.
8. Can I reset the check engine light after fixing OBDII code P0401 in a 1997 Toyota Camry?
Yes, you can reset the check engine light using an OBDII scanner after fixing code P0401 in a 1997 Toyota Camry. This will clear the stored fault code and turn off the warning light.
9. Will OBDII code P0401 cause my 1997 Toyota Camry to fail an emissions test?
Yes, code P0401 in a 1997 Toyota Camry can cause the vehicle to fail an emissions test due to the inadequate recirculation of exhaust gases, which affects emissions levels.
10. How often does OBDII code P0401 occur in a 1997 Toyota Camry?
Code P0401 can occur sporadically or more frequently depending on the condition of the EGR system and related components in a 1997 Toyota Camry. Regular maintenance and inspection can help prevent its occurrence.
Discuss the causes and fixes for P0401 1997 Toyota Camry OBDII Code
-
pls Auto help me with this code p0401 and P0441 toyota camry 1997 model what can I do now
-
Help me locate the one I'am going to replace toyota 2091 model pls if u can send the dagram to me
-
Hello I read this whole article and it seems like most things have checked out for me, yet I still have this code coming up. I have a V6 3.0 Toyota Camry 1997, I've replaced the EGR valve, EGR Sensor, Engine air filter and I've replaced 1 of the 2 VSV valves. Is there anything else I may be missing ? Or over looking?
-
The code means that there insufficient EGR gases going through the EGR valve. Either the EGR valve is not opening or the passage (from the EGR valve to the intake) is clogged.
Apply vacuum to the EGR valve and verified that the EGR valve opens and that the engine dies (or runs rough) when the EGR valve is open. If the engines does not die or runs rough, then you have a clogged EGR passage from the valve to the intake, otherwise the problem is that the EGR is not getting enough vacuum to open.

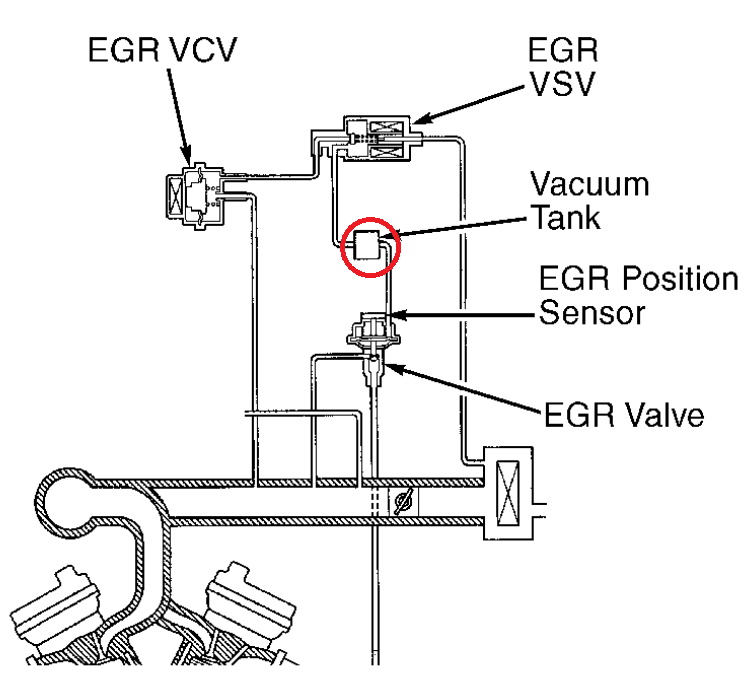

Click here to enlarge image -
Ok so I haven't yet vacuum tested the valve, but i cleaned all the lines, eveb the air intake everything I still got the code after driving for about 5 miles... I haven't tried the vacuum since the EGR is brand new, but I can try that next. Anything that else that i could try?
-
Other that no vacuum to the valve, I can't off anything else. If you had an electrical problem for one of the Solenoid Valve (EGR VDV or EGR VSV) then you had other codes. My guess is that there is no vacuum. Disconnect the vacuum line to the EGR VCV and check test with your fingers if the vacuum changes when you rev up the engine.
-
Ok I will test for vacuum next and get back to you! I appreciate th help!
-
So I tested the EGR for vacuum and when I reved up the engine I got it to vacuum. Is that bad?
