P0303 2005 Nissan Sentra Code - Number 3 Cylinder Misfire Detected
Quick Answer
When a misfire occurs, engine speed will fluctuate. Common causes include Faulty Spark Plug #3, Clogged or faulty Fuel Injector #3, Faulty Ignition Coil #3. Severity is High - diagnose this code as soon as possible. Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
- What it means
- P0303 2005 Nissan Sentra indicates Number 3 Cylinder Misfire Detected.
- Common causes
- Common causes include Faulty Spark Plug #3, Clogged or faulty Fuel Injector #3, Faulty Ignition Coil #3.
- Severity
- High - diagnose this code as soon as possible.
- Can I drive?
- Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
Code P0303 2005 Nissan Sentra Description
What are the Possible Causes of the DTC P0303 2005 Nissan Sentra?
- Faulty Spark Plug #3
- Clogged or faulty Fuel Injector #3
- Faulty Ignition Coil #3
- Fuel Injector #3 harness is open or shorted
- Fuel Injector #3 circuit poor electrical connection
- Ignition Coil #3 harness is open or shorted
- Ignition Coil #3 circuit poor electrical connection
- Insufficient cylinder 3 compression
- Incorrect fuel pressure
- Intake air leak
How to Fix the DTC P0303 2005 Nissan Sentra?
Review the 'Possible Causes' above and visually examine the corresponding wiring harness and connectors. Check for damaged components and inspect connector pins for signs of being broken, bent, pushed out, or corroded.
Code Tech Notes
User Submitted Video
What is the Cost to Diagnose the Code?
Labor: 1.0
To diagnose the P0303 2005 Nissan Sentra code, it typically requires 1.0 hour of labor. Rates vary by location, vehicle, and shop. Many shops charge between $80–$150 per hour; dealerships and metro areas may be higher, independents may be lower.
Need more information about the P0303 2005 Nissan Sentra code?
Need more information on how to fix the P0303 2005 Nissan Sentra code? Get Access to Factory Service Manuals
Need Help with the Code?
Get the P0303 2005 Nissan Sentra code diagnosed by a professional: Find a repair shop in your area
Frequently Asked Questions about P0303 2005 Nissan Sentra Code
1. What are the common symptoms of a P0303 code on a 2005 Nissan Sentra?
- Common symptoms include engine misfiring, rough idling, loss of power, and potentially increased fuel consumption.
2. What are some possible causes of a number 3 cylinder misfire in a 2005 Nissan Sentra?
- Potential causes include faulty spark plugs, ignition coils, fuel injectors, vacuum leaks, low compression, or issues with the engine's computer system.
3. How can I diagnose a P0303 code on my 2005 Nissan Sentra?
- Diagnose the code by checking the spark plugs, ignition coils, fuel injectors, compression levels, vacuum leaks, and conducting a thorough visual inspection of the engine components.
4. Can driving with a P0303 code on a 2005 Nissan Sentra cause further damage?
- Continued driving with a misfire can potentially lead to damage to the catalytic converter, O2 sensors, or other engine components, so it's best to address the issue promptly.
5. How do I repair a number 3 cylinder misfire in my 2005 Nissan Sentra?
- Repair steps may include replacing faulty spark plugs, ignition coils, or fuel injectors, fixing vacuum leaks, addressing compression issues, and clearing the error code from the ECU.
6. Is it safe to continue driving my 2005 Nissan Sentra with a P0303 code?
- It is not recommended to drive the vehicle with a misfire as it can lead to further damage and potential safety hazards. It's best to address the issue as soon as possible.
7. Can a dirty or clogged fuel injector cause a P0303 code in a 2005 Nissan Sentra?
- Yes, a dirty or clogged fuel injector can disrupt the fuel delivery to the number 3 cylinder, leading to a misfire and triggering the P0303 code.
8. Will resetting the check engine light make the P0303 code disappear on a 2005 Nissan Sentra?
- Resetting the check engine light may temporarily clear the code, but if the underlying issue causing the misfire is not addressed, the code is likely to reappear.
9. How much does it typically cost to repair a P0303 code in a 2005 Nissan Sentra?
- The cost of repair can vary depending on the exact cause of the misfire, but it may range from $100 to $500 or more, including parts and labor.
10. Can a DIY enthusiast fix a P0303 code in a 2005 Nissan Sentra?
- Depending on the individual's mechanical skills and available tools, some DIY enthusiasts may be able to diagnose and repair a number 3 cylinder misfire, but it's important to have a good understanding of automotive systems and safety precautions.
Discuss the causes and fixes for P0303 2005 Nissan Sentra OBDII Code
-

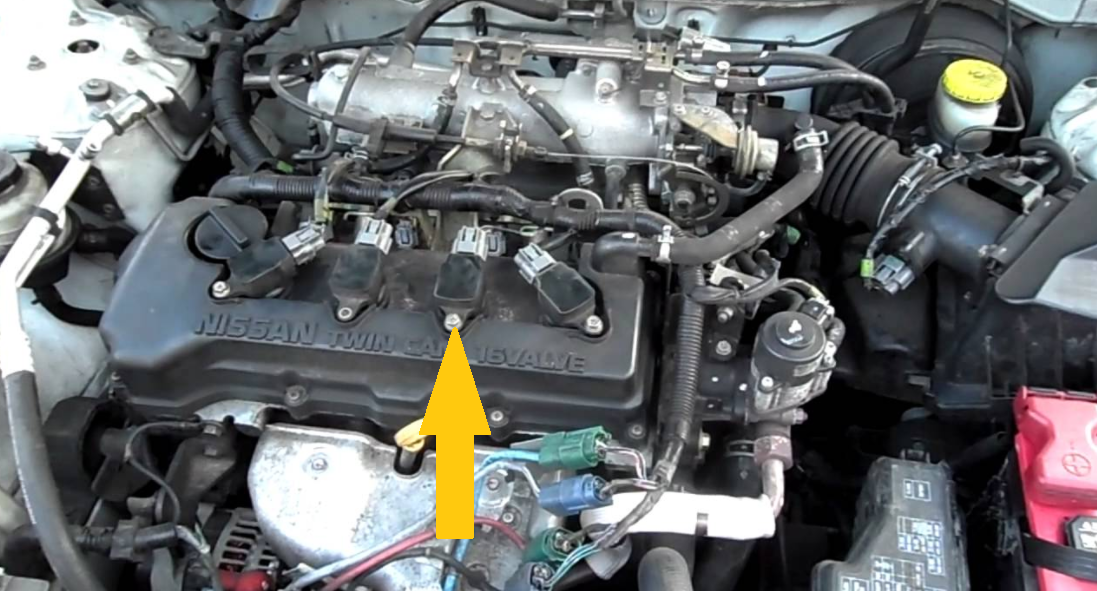

Unfortunately there are many things that can cause the cylinder misfire code. One of the most common cause for the code is the ignition coil. In your case, since you have the P0303 code, the problem could be the Ignition Coil #3.
-
The ignition coils are on top of the spark plugs and is the part that power the spark plug to produce the spark.
Ignition Coil
Read more: https://www.autocodes.com/g...
Click here to enlarge image
