P0172 2010 TOYOTA CAMRY

P0172 2010 TOYOTA CAMRY - System Too Rich Bank 1

Repair Importance Level: 3/3
Repair Difficulty Level: 3/3
Comments  |  Add Comment

Possible causes

  • Faulty front heated oxygen sensor

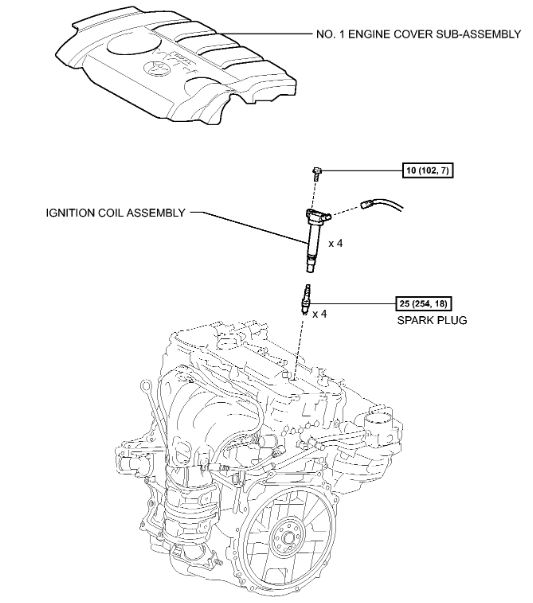

  • Ignition misfiring
  • Faulty fuel injectors
  • Exhaust gas leaks
  • Incorrect fuel pressure
  • Faulty Mass Air Flow (MAF) sensor

When is the code detected?

- Fuel injection system does not operate properly.
- The amount of mixture ratio compensation is too large. (The mixture ratio is too rich.)

Possible symptoms

  • Engine Light ON (or Service Engine Soon Warning Light)
  • Excessive Fuel Consumption

P0172 2010 Toyota Camry Description

The fuel trim is related to the feedback compensation value, not to the basic injection time. The fuel trim consists of both the short-term and the long-term fuel trims. The short-term fuel trim is fuel compensation that is used to constantly maintain the air-fuel ratio at stoichiometric levels. The signal from the Air-Fuel Ratio (A/F) sensor indicates whether the air-fuel ratio is rich or lean compared to the stoichiometric ratio. This triggers a reduction in the fuel injection volume if the air-fuel ratio is rich and an increase in the fuel injection volume if it is lean.Factors such as individual engine differences, wear over time and changes in operating environment cause short-term fuel trim to vary from the central value. The long-term fuel trim, which controls overall fuel compensation, compensates for long-term deviations in the fuel trim from the central value caused by the short-term fuel trim compensation. If both the short-term and long-term fuel trims are lean or rich beyond predetermined values, it is interpreted as a malfunction, and the ECM illuminates the MIL and sets a DTC.
