P0011 2010 Nissan Sentra Code - Intake Valve Timing Control Performance Bank 1
Quick Answer
This mechanism hydraulically controls cam phases continuously with the fixed operating angle of the intake valve. Common causes include Low or Dirty Engine Oil, Faulty Intake Valve Timing Control Solenoid Valve, Intake Valve Timing Control Solenoid Valve harness is open or shorted. Severity is High - diagnose this code as soon as possible. Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
- What it means
- P0011 2010 Nissan Sentra indicates Intake Valve Timing Control Performance Bank 1.
- Common causes
- Common causes include Low or Dirty Engine Oil, Faulty Intake Valve Timing Control Solenoid Valve, Intake Valve Timing Control Solenoid Valve harness is open or shorted.
- Severity
- High - diagnose this code as soon as possible.
- Can I drive?
- Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
Code P0011 2010 Nissan Sentra Description
The ECM receives signals such as crankshaft position, camshaft position, engine speed, and engine coolant temperature. Then, the ECM sends ON/OFF pulse duty signals to the intake valve timing control solenoid valve depending on driving status. This makes it possible to control the shut/open timing of the intake valve to increase engine torque in low/mid speed range and output in high-speed range.
The intake valve timing control solenoid valve changes the oil amount and direction of flow through intake valve timing control unit or stops oil flow. The longer pulse width advances valve angle. The shorter pulse width retards valve angle. When ON and OFF pulse widths become equal, the solenoid valve stops oil pressure flow to fix the intake valve angle at the control position.
What are the Possible Causes of the DTC P0011 2010 Nissan Sentra?
- Low or Dirty Engine Oil

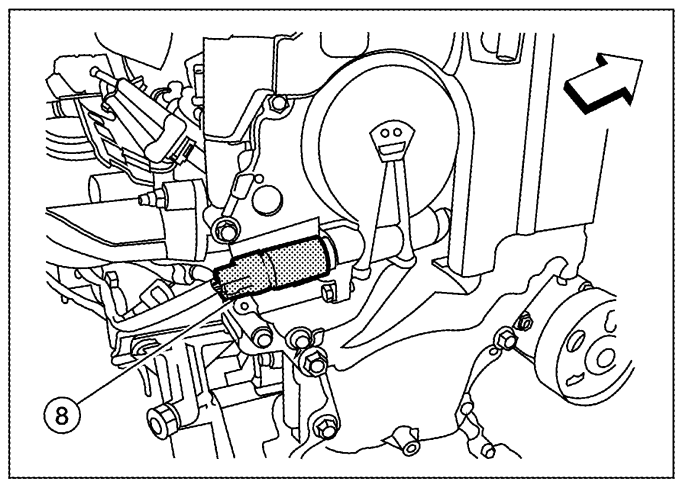

- Faulty Intake Valve Timing Control Solenoid Valve
- Intake Valve Timing Control Solenoid Valve harness is open or shorted
- Intake Valve Timing Control Solenoid Valve circuit poor electrical connection
- Faulty Camshaft Position Sensor
- Camshaft Position Sensor harness is open or shorted
- Camshaft Position Sensor circuit poor electrical connection
- Faulty Crankshaft Position Sensor (POS)
How to Fix the DTC P0011 2010 Nissan Sentra?
Review the 'Possible Causes' above and visually examine the corresponding wiring harness and connectors. Check for damaged components and inspect connector pins for signs of being broken, bent, pushed out, or corroded.
Code Tech Notes
What is the Cost to Diagnose the Code?
Labor: 1.0
To diagnose the P0011 2010 Nissan Sentra code, it typically requires 1.0 hour of labor. Rates vary by location, vehicle, and shop. Many shops charge between $80–$150 per hour; dealerships and metro areas may be higher, independents may be lower.
Need more information about the P0011 2010 Nissan Sentra code?
Need more information on how to fix the P0011 2010 Nissan Sentra code? Get Access to Factory Service Manuals
Need Help with the Code?
Get the P0011 2010 Nissan Sentra code diagnosed by a professional: Find a repair shop in your area
Frequently Asked Questions about P0011 2010 Nissan Sentra Code
1. What are the common symptoms of OBDII code P0011 in a 2010 Nissan Sentra?
The common symptoms of OBDII code P0011 in a 2010 Nissan Sentra may include rough idling, engine misfires, decreased fuel efficiency, and potentially stalling.
2. What does the OBDII code P0011 "Intake Valve Timing Control Performance Bank 1" mean for a 2010 Nissan Sentra?
The code P0011 indicates that there is a performance issue with the intake valve timing control system on Bank 1 of the engine in a 2010 Nissan Sentra.
3. What are the possible causes of OBDII code P0011 in a 2010 Nissan Sentra?
Possible causes of OBDII code P0011 in a 2010 Nissan Sentra include a faulty intake valve timing control solenoid, dirty engine oil, timing chain issues, or a malfunctioning camshaft position sensor.
4. How can I diagnose the OBDII code P0011 in my 2010 Nissan Sentra?
To diagnose OBDII code P0011 in a 2010 Nissan Sentra, you may need to perform a thorough inspection of the intake valve timing control system components, check the engine oil level and quality, and scan the vehicle's computer for any related trouble codes.
5. Can driving with OBDII code P0011 in a 2010 Nissan Sentra cause further damage?
Continuing to drive with OBDII code P0011 in a 2010 Nissan Sentra can potentially cause damage to the engine components, such as the timing chain or camshaft, leading to more costly repairs if left unresolved.
6. How can I repair OBDII code P0011 in my 2010 Nissan Sentra?
To repair OBDII code P0011 in a 2010 Nissan Sentra, you may need to replace the intake valve timing control solenoid, clean or change the engine oil, inspect and potentially replace the timing chain, or address any issues with the camshaft position sensor.
7. Is it safe to continue driving my 2010 Nissan Sentra with OBDII code P0011?
It is not recommended to continue driving your 2010 Nissan Sentra with OBDII code P0011, as the underlying issue could potentially worsen and lead to more severe engine problems if not addressed promptly.
8. Can a DIY enthusiast fix OBDII code P0011 in a 2010 Nissan Sentra?
Depending on your skill level and experience, some DIY enthusiasts may be able to address OBDII code P0011 in a 2010 Nissan Sentra by following repair guides and using the necessary tools. However, complex issues may require professional help.
9. How much does it typically cost to repair OBDII code P0011 in a 2010 Nissan Sentra?
The cost of repairing OBDII code P0011 in a 2010 Nissan Sentra can vary depending on the root cause of the issue, the parts needed for replacement, and whether you choose to do the repairs yourself or seek assistance from a mechanic. Costs can range from a few hundred to over a thousand dollars.
10. Will resetting the OBDII code P0011 in my 2010 Nissan Sentra make the issue go away?
Simply resetting the OBDII code P0011 in a 2010 Nissan Sentra without addressing the underlying problem will not make the issue go away permanently. It is crucial to diagnose and repair the root cause of the code to prevent it from reoccurring.
Discuss the causes and fixes for P0011 2010 Nissan Sentra OBDII Code
-
Depends exactly what the problems is. Have you checked the engine oil level and condition? The valve is around $240 + labor
-
I recently (like two or three weeks ago) changed the oil and oil filter. At first the oil was somewhat dark but now it looks back to normal.
-
Did you get the code after or before the oil change? if you clear the code how long take to come back?
-
I didn't clear the code. And I got the code before I did the oil change. Now the car is running rough and it lacks power.
-
Try clearing the code first, but unfortunately, it does sound like you may have a bad valve
-
