P0010 Toyota Code - Camshaft Position 'A' Actuator Circuit Bank 1
Quick Answer
The Variable Valve Timing (VVT) system adjusts the intake valve timing to improve driveability. Common causes include Dirty Oil, Faulty Camshaft Timing Oil Control Valve Assembly, Camshaft Timing Oil Control Valve Assembly circuit is open or shorted. Severity is High - diagnose this code as soon as possible. Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
- What it means
- P0010 Toyota indicates Camshaft Position 'A' Actuator Circuit Bank 1.
- Common causes
- Common causes include Dirty Oil, Faulty Camshaft Timing Oil Control Valve Assembly, Camshaft Timing Oil Control Valve Assembly circuit is open or shorted.
- Severity
- High - diagnose this code as soon as possible.
- Can I drive?
- Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
Code P0010 Toyota Description
The camshaft timing oil control valve assembly is a solenoid valve and switches the engine oil line. The valve moves when the Engine Control Module (ECM) applies 12 V to the solenoid. The ECM changes the energizing time to the solenoid (duty-cycle) in accordance with the camshaft position, crankshaft position, throttle position, etc.
This Diagnostic Trouble Code (DTC) is designed to detect an open or short in the camshaft timing oil control valve assembly (for intake camshaft) circuit. If the camshaft timing oil control valve duty-cycle is excessively high or low while the ignition switch is ON or the engine is running, the ECM will illuminate the MIL and store the DTC.
What are the Possible Causes of the DTC P0010 Toyota?
- Dirty Oil
- Faulty Camshaft Timing Oil Control Valve Assembly
- Camshaft Timing Oil Control Valve Assembly circuit is open or shorted
- Camshaft Timing Oil Control Valve Assembly circuit is open or shorted
- Faulty Engine Control Module (ECM)
How to Fix the DTC P0010 Toyota?
Review the 'Possible Causes' above and visually examine the corresponding wiring harness and connectors. Check for damaged components and inspect connector pins for signs of being broken, bent, pushed out, or corroded.
What is the Cost to Diagnose the Code?
Labor: 1.0
To diagnose the P0010 Toyota code, it typically requires 1.0 hour of labor. Rates vary by location, vehicle, and shop. Many shops charge between $80–$150 per hour; dealerships and metro areas may be higher, independents may be lower.
Need more information about the P0010 Toyota code?
Need more information on how to fix the P0010 Toyota code? Get Access to Factory Service Manuals
Need Help with the Code?
Get the P0010 Toyota code diagnosed by a professional: Find a repair shop in your area
Information for Specific Toyota Models
- P0010 2006 Toyota Camry — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2007 Toyota Camry — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2008 Toyota Camry — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2009 Toyota Camry — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2010 Toyota Camry — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2011 Toyota Camry — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2000 Toyota Corolla — Camshaft Position 'A' Actuator Circuit Bank 1 3ZZ-FE Engine
- P0010 2001 Toyota Corolla — Camshaft Position 'A' Actuator Circuit Bank 1 3ZZ-FE Engine
- P0010 2002 Toyota Corolla — Camshaft Position 'A' Actuator Circuit Bank 1 3ZZ-FE Engine
- P0010 2003 Toyota Corolla — Camshaft Position 'A' Actuator Circuit Bank 1 3ZZ-FE Engine
- P0010 2005 Toyota Corolla — Camshaft Position 'A' Actuator Circuit Bank 1 3ZZ-FE Engine
- P0010 2006 Toyota Corolla — Camshaft Position 'A' Actuator Circuit Bank 1 3ZZ-FE Engine
- P0010 2001 Toyota Highlander — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2002 Toyota Highlander — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2003 Toyota Highlander — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2004 Toyota Highlander — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2005 Toyota Highlander — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2006 Toyota Highlander — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2007 Toyota Highlander — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2004 Toyota Prius — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2005 Toyota Prius — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2006 Toyota Prius — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2007 Toyota Prius — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2008 Toyota Prius — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2009 Toyota Prius — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2013 Toyota RAV4 — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2014 Toyota RAV4 — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2015 Toyota RAV4 — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2016 Toyota RAV4 — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2017 Toyota RAV4 — Camshaft Position 'A' Actuator Circuit Bank 1
- P0010 2018 Toyota RAV4 — Camshaft Position 'A' Actuator Circuit Bank 1
Frequently Asked Questions about P0010 Toyota Code
1. What are the common symptoms of OBDII code P0010 in a Toyota?
- Common symptoms include poor engine performance, rough idling, stalling, and decreased fuel efficiency.
2. What causes the OBDII code P0010 in a Toyota?
- The code is typically triggered by a faulty camshaft position actuator solenoid, wiring issues, or a malfunctioning camshaft position sensor.
3. How can I diagnose the OBDII code P0010 in my Toyota?
- Diagnosis involves checking the camshaft position actuator solenoid, inspecting wiring for damage, and testing the camshaft position sensor for proper function.
4. Can I continue driving my Toyota with OBDII code P0010?
- It is not recommended to drive the vehicle with this code as it can lead to further engine damage and decreased performance.
5. How much does it cost to repair OBDII code P0010 in a Toyota?
- The cost of repair can vary depending on the exact cause of the issue, but it typically ranges from $200 to $500 for parts and labor.
6. Can I repair OBDII code P0010 in my Toyota myself?
- If you have the necessary tools and experience, you may be able to replace the camshaft position actuator solenoid yourself. However, it is recommended to consult a professional for proper diagnosis and repair.
7. Is OBDII code P0010 a common issue in Toyota vehicles?
- Yes, this code is relatively common in Toyota vehicles, especially in models with variable valve timing systems.
8. How long does it take to repair OBDII code P0010 in a Toyota?
- The repair process can typically be completed within a few hours by a skilled technician.
9. Will resetting the OBDII code P0010 clear the issue in my Toyota?
- Resetting the code may temporarily turn off the check engine light, but it will not fix the underlying problem causing the code to trigger.
10. Can OBDII code P0010 cause permanent damage to the engine of my Toyota?
- If left unresolved, the issues causing this code can potentially lead to permanent damage to the engine, so it is important to address the problem promptly.
1. What are the common symptoms of OBDII code P0010 in a Toyota vehicle?
- Common symptoms include rough idling, engine misfires, reduced fuel efficiency, and the Check Engine Light coming on.
2. What causes the OBDII code P0010 in a Toyota, specifically related to the Camshaft Position 'A' Actuator Circuit Bank 1?
- The code is typically triggered by a faulty camshaft position actuator solenoid, wiring issues, or a malfunctioning camshaft position sensor.
3. How can I diagnose the OBDII code P0010 in my Toyota related to the Camshaft Position 'A' Actuator Circuit Bank 1?
- Diagnosis involves checking the camshaft position actuator solenoid, inspecting the wiring for any damage, and testing the camshaft position sensor for proper function.
4. Can driving with the OBDII code P0010 in a Toyota cause further damage to the vehicle?
- Continuing to drive with this code can potentially lead to engine damage, reduced performance, and increased fuel consumption.
5. What are some repair tips for fixing the OBDII code P0010 in a Toyota related to the Camshaft Position 'A' Actuator Circuit Bank 1?
- Repair tips include replacing the camshaft position actuator solenoid, repairing any damaged wiring, and ensuring proper connection of the camshaft position sensor.
6. Is it safe to continue driving my Toyota with the Check Engine Light on due to the OBDII code P0010?
- It is not recommended to continue driving with the Check Engine Light on, as it indicates an issue that needs to be addressed to prevent further damage to the vehicle.
7. How much does it typically cost to repair the OBDII code P0010 in a Toyota related to the Camshaft Position 'A' Actuator Circuit Bank 1?
- The cost of repair can vary depending on the exact cause of the issue, but it may range from $200 to $500 for parts and labor.
8. Can I reset the OBDII code P0010 in my Toyota without fixing the underlying issue?
- While you can clear the code temporarily, the underlying issue causing the code will need to be addressed to prevent it from reoccurring.
9. Are there any preventative maintenance steps to avoid the OBDII code P0010 in a Toyota related to the Camshaft Position 'A' Actuator Circuit Bank 1?
- Regularly changing engine oil and following the manufacturer's recommended maintenance schedule can help prevent issues that may trigger this code.
10. How long does it typically take to repair the OBDII code P0010 in a Toyota?
- The repair time can vary depending on the exact cause of the issue and the availability of parts, but it may take anywhere from 1 to 3 hours to complete the repair.
Discuss the causes and fixes for P0010 Toyota OBDII Code
-
-
V. 6 Engine avalon 2003 car and the car is doing high starting like 4 * be for the car will start I hv P0010 and P0020 code so pls help me repair the car
-
P0010 code still shows on my 2007
toyota yaris. It gives hard start like 3times -
Have you replaced any parts? are there any more codes?

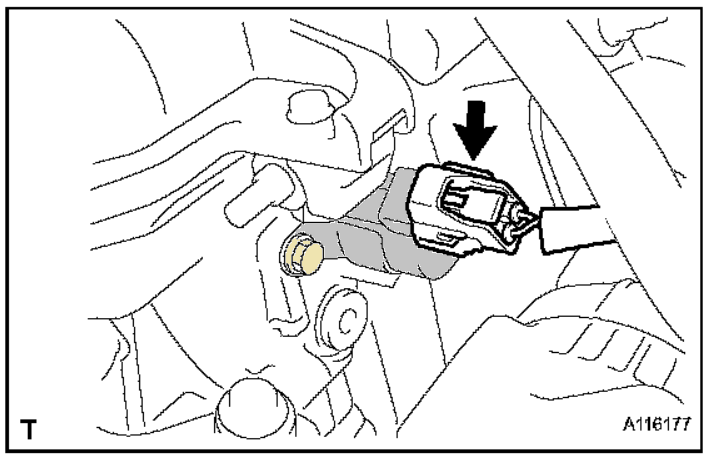

Start by changing the engine oil and filter, and if the problem persist, then you have to replace the Oil Control Valve (OCV). The valve is near the alternator.
Click here to enlarge image -
Hello Auto i have this P0010 TOYOTA - Camshaft Position 'A' Actuator Circuit Bank 1
code on my 2004 model toyota camry 3.0 24v? the engine is on?
-
Start by replacing the Camshaft Position Sensor, but if the problem persist, then you may have to replace the Powertrain Control Module (PCM).
-
Hello, getting this same error (P0010) on my 2006 Toyota Yaris Manual Transmission. Symptoms are there seems to be significant lack/ loss of power especially when accelerating and engine idle is kinda rough/ sluggish. What gives?
-
How is engine oil level and condition? You could start by changing the engine oil and filter. If the oil is OK, then you may have to replace the Variable Valve Timing (VVT) .
-
Two different code that more than likely are not related. You could start by clearing the code and check what code comes back first and work on that code.
For the P0010 you could start by changing the engine oil and filter. For the P0420 code you could start by using high octane gas and if possible an fuel injector cleaning, but the Catalytic Converter is the most like the cause of the problem.
-
p0010 p0037 p0403 p0443 Corolla 2012 1.33 When I delete the car code, p0010 remains and the engine malfunction light warns me to check the engine, other fault codes come back over time.
-
Begin by checking the engine oil level and its condition. If necessary, change the engine oil using the factory-recommended oil weight. If the oil is at an adequate level and condition, the next step is to replace the Camshaft Timing Oil Control Valve Assembly to resolve the issue.
