B1411 2015 Toyota RAV4 Code - Room Temperature Sensor Circuit
Quick Answer

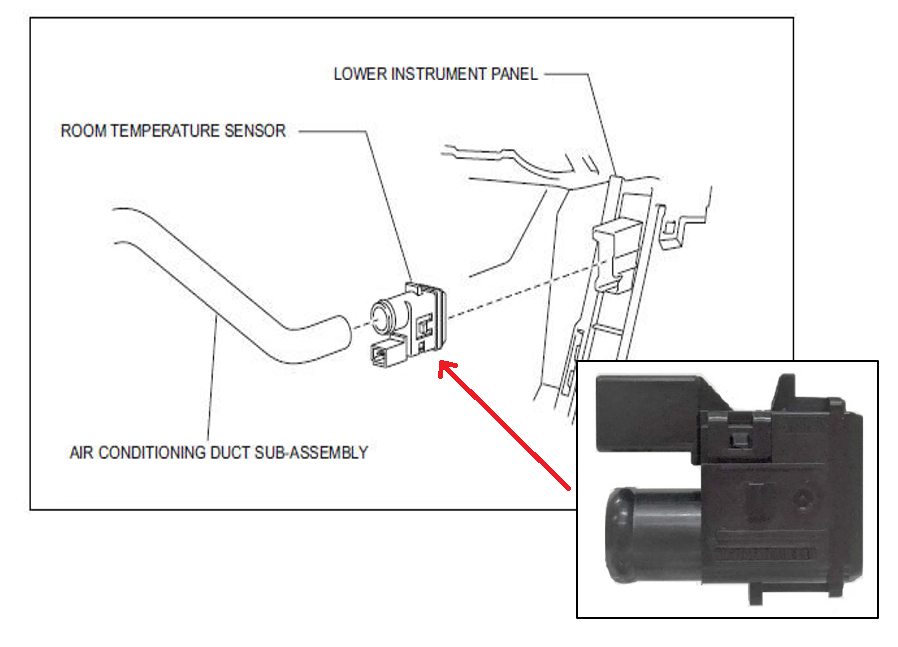

The Cooler Thermistor (Room Temperature Sensor) is installed in the instrument panel to detect the cabin temperature which is used to control the heater and air conditioning system AUTO mode. Common causes include Faulty Cooler Thermistor (Room Temperature Sensor), Room Temperature Sensor harness is open or shorted, Room Temperature Sensor circuit poor electrical connection. Severity is High - diagnose this code as soon as possible. Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
- What it means
- B1411 2015 Toyota RAV4 indicates Room Temperature Sensor Circuit.
- Common causes
- Common causes include Faulty Cooler Thermistor (Room Temperature Sensor), Room Temperature Sensor harness is open or shorted, Room Temperature Sensor circuit poor electrical connection.
- Severity
- High - diagnose this code as soon as possible.
- Can I drive?
- Driving is not recommended if the warning light is flashing, the engine runs poorly, or safety-related symptoms are present.
Code B1411 2015 Toyota RAV4 Description
The Air Conditioning Amplifier Assembly applies a voltage (5 V) to the Cooler Thermistor (Room Temperature Sensor) and reads voltage changes due to changes in the resistance of the Cooler Thermistor (Room Temperature Sensor).
The Diagnostic Trouble Code (DTC) will be set when the Air Conditioning Amplifier Assembly detects an open or short in the Cooler Thermistor (Room Temperature Sensor) circuit.
What are the Possible Causes of the DTC B1411 2015 Toyota RAV4?
- Faulty Cooler Thermistor (Room Temperature Sensor)
- Room Temperature Sensor harness is open or shorted
- Room Temperature Sensor circuit poor electrical connection
- Faulty Air Conditioning Amplifier Assembly
How to Fix the DTC B1411 2015 Toyota RAV4?
Review the 'Possible Causes' above and visually examine the corresponding wiring harness and connectors. Check for damaged components and inspect connector pins for signs of being broken, bent, pushed out, or corroded.
What is the Cost to Diagnose the Code?
Labor: 1.0
To diagnose the B1411 2015 Toyota RAV4 code, it typically requires 1.0 hour of labor. Rates vary by location, vehicle, and shop. Many shops charge between $80–$150 per hour; dealerships and metro areas may be higher, independents may be lower.
Need more information about the B1411 2015 Toyota RAV4 code?
Need more information on how to fix the B1411 2015 Toyota RAV4 code? Get Access to Factory Service Manuals
Need Help with the Code?
Get the B1411 2015 Toyota RAV4 code diagnosed by a professional: Find a repair shop in your area
Frequently Asked Questions about B1411 2015 Toyota RAV4 Code
1. What are the common symptoms of OBDII code B1411 in a 2015 Toyota RAV4?
- The common symptoms include inaccurate temperature readings on the climate control system, erratic HVAC behavior, or a malfunction indicator light (MIL) illuminated on the dashboard.
2. What does the Room Temperature Sensor Circuit code B1411 in a 2015 Toyota RAV4 indicate?
- OBDII code B1411 indicates a problem with the room temperature sensor circuit in the vehicle, affecting the climate control system's ability to accurately read the interior temperature.
3. What are the possible causes of OBDII code B1411 in a 2015 Toyota RAV4?
- Possible causes of code B1411 include a faulty room temperature sensor, damaged wiring or connectors in the sensor circuit, or a malfunctioning climate control module.
4. How can I diagnose the Room Temperature Sensor Circuit issue in my 2015 Toyota RAV4?
- Diagnosing the issue involves checking the room temperature sensor's wiring and connectors for damage, testing the sensor's resistance, and using a scan tool to retrieve specific diagnostic trouble codes (DTCs).
5. Can I still drive my 2015 Toyota RAV4 with OBDII code B1411?
- While the vehicle may still be operational with this code, it is recommended to address the issue promptly to avoid potential discomfort from incorrect climate control readings and to prevent further damage to the HVAC system.
6. What steps can I take to repair OBDII code B1411 in my 2015 Toyota RAV4?
- Repair steps may involve replacing the faulty room temperature sensor, repairing or replacing damaged wiring or connectors, or resetting the climate control module after addressing the underlying issue.
7. Is it possible to reset OBDII code B1411 in a 2015 Toyota RAV4 without fixing the root cause?
- While clearing the code temporarily may be possible, it is essential to address the root cause to prevent the code from reoccurring and ensure proper functionality of the climate control system.
8. Can extreme temperatures or environmental factors trigger OBDII code B1411 in a 2015 Toyota RAV4?
- Extreme temperatures or environmental factors may not directly trigger code B1411, but they can exacerbate existing issues with the room temperature sensor circuit, leading to inaccurate readings and potential fault codes.
9. How much does it typically cost to repair OBDII code B1411 in a 2015 Toyota RAV4?
- The cost of repairing code B1411 can vary depending on the specific issue, parts needed, and labor charges. It is recommended to consult a professional mechanic for an accurate assessment and cost estimate.
10. Are there any recalls or technical service bulletins related to OBDII code B1411 in the 2015 Toyota RAV4?
- It is advisable to check with Toyota dealerships or online resources for any relevant recalls or technical service bulletins related to code B1411 in the 2015 Toyota RAV4 to stay informed about potential solutions or updates from the manufacturer.
