Review the 'Possible Causes' mentioned above and visually examine the corresponding wiring harness and connectors. Ensure to check for any damaged components and inspect the connector pins for signs of being broken, bent, pushed out, or corroded.
To diagnose the P0113 Cadillac code, it typically requires 1.0 hour of labor. The specific diagnosis time and labor rates at auto repair shops can differ based on factors such as the location, make and model of the vehicle, and even the engine type. It is common for most auto repair shops to charge between $75 and $150 per hour.

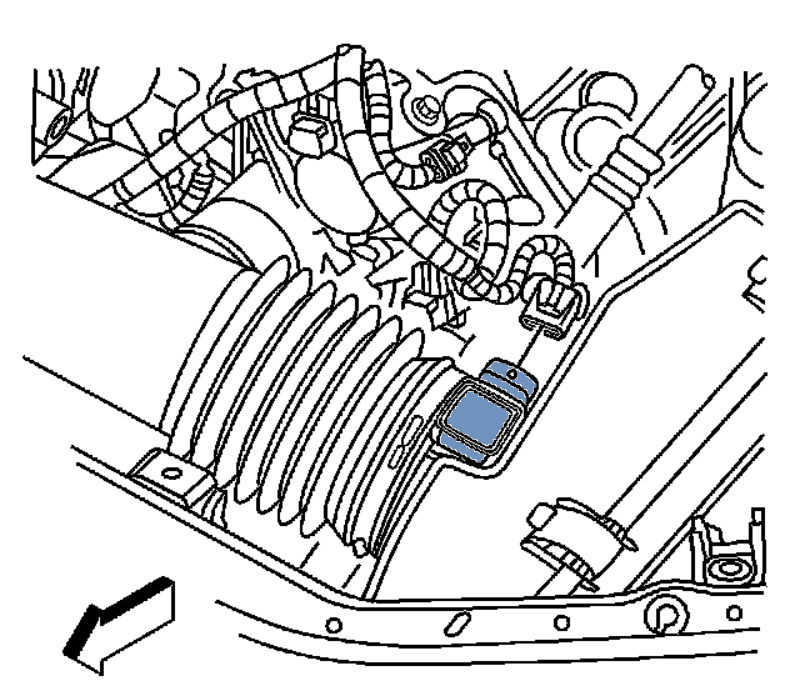

The intake air temperature (IAT) sensor 1 is a variable resistor that measures the temperature of the air in the sensor bore. The Engine Control Module (ECM) supplies 5 V to the IAT sensor 1 signal circuit and a ground for the IAT sensor 1 low reference circuit. The signal varies with inlet air temperature and is displayed by the scan tool as °C (°F). The multifunction intake air sensor houses the IAT sensor 1, IAT sensor 2, Humidity sensor, Mass Air Flow (MAF) sensor and BARO pressure sensor. The Diagnostic Trouble Code (DTC) ECM detects that the IAT sensor 1 signal is colder than -60°C (-76°F) for greater than 5 s.
Need more information on how to fix the P0113 Cadillac code? Get Access to Factory Service Manuals
Get the P0113 Cadillac code diagnosed by a professional: Find a repair shop in your area
